Medical Device Flex Circuits

Medical
Flexible Circuitry

High-reliability flex and rigid-flex for medical devices, implants, diagnostic ultrasound, and patient monitoring — manufactured with the same rigor as aerospace.

Medical Device Manufacturing

High-Reliability Flex for Life-Critical Applications

GCA Flex specializes in medical flex circuits — the same manufacturing rigor used in aerospace applied to devices where reliability is equally critical.

GCA Flex manufactures high-reliability flex and rigid-flex circuits for Medical Device, Medical Implant, Diagnostic Ultrasound, Telecommunications, and Patient Monitoring applications.

Our medical flex capabilities include adhesiveless construction for the thinnest, most flexible circuits. Additive processing enables trace/space to .0015 inch for high-density diagnostic equipment.

Selective polyimide removal permits cantilevered and windowed leads. Alternate conductor materials — beryllium copper, stainless steel, cupronickel — available for unique application requirements.

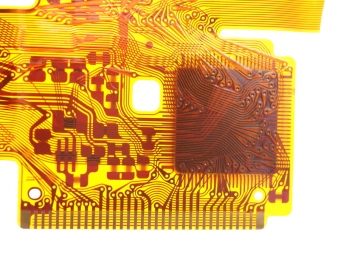

Medical flexible circuits high reliability

Medical Capabilities

Advanced Manufacturing for Medical

Adhesiveless Construction

Thinner, more flexible circuits for wearable and implantable devices where minimizing size and weight is paramount.
Additive processing enables higher-density circuits for sophisticated diagnostic equipment with hundreds of independent channels.

Microvia to .001

Laser-drilled microvias for extremely high-density multilayer flex — essential for ultrasound transducers and neural interfaces.

Selective Plating

Gold and tin-lead plating on the same circuit — multiple attachment methods for complex medical device termination requirements.

Cantilevered & Windowed Leads

Selective polyimide removal permits cantilevered and windowed leads — essential for ZIF connectors and other medical termination styles.

Alternate Conductor Materials

Beryllium copper, stainless steel, and cupronickel for unique mechanical, thermal, or electrical requirements in medical applications.

844-359-3539

Ready to Start Your Project?

30+ years of flex circuit expertise. Quick turnarounds. ISO 9001 certified. ITAR registered.
Request a Quote
